ovs-dpdk loss packet in
vhost-user
ovs-dpdk观察vring
在host上观察到vring一直都是满的:
kvm统计中断注入
kvm:kvm_inj_virq:表示 KVM 向 guest 注入虚拟中断。
kvm:kvm_set_irq:表示设置某个中断请求(IRQ)。 kvm:kvm_exit 和
kvm:kvm_entry:用于追踪 VM Exit 和 Entry,可能与中断处理相关。
irq:irq_handler_entry 和 irq:irq_handler_exit:追踪主机端的 IRQ
处理,可能与 virtio-net 的中断相关。
1 2 3 4 5 6 7 8 9 10 11 12 13 14
| #!/usr/bin/bpftrace
tracepoint:kvm:kvm_inj_virq { @interrupts[args->irq] = count(); }
END { printf("KVM 注入的中断统计:\n"); print(@interrupts); }
kvm_inj_virq:这个跟踪点会在 KVM 注入虚拟中断时触发。 args->irq:表示注入的中断号(IRQ 向量)。 @interrupts:一个哈希表,用于按中断号统计注入次数。
|
vm中软中断、硬中断
/proc/interrupts
vm_proc_interrupts
/proc/softirqs
1
| /usr/share/bcc/tools/trace -tKU pick_next_task_idle
|

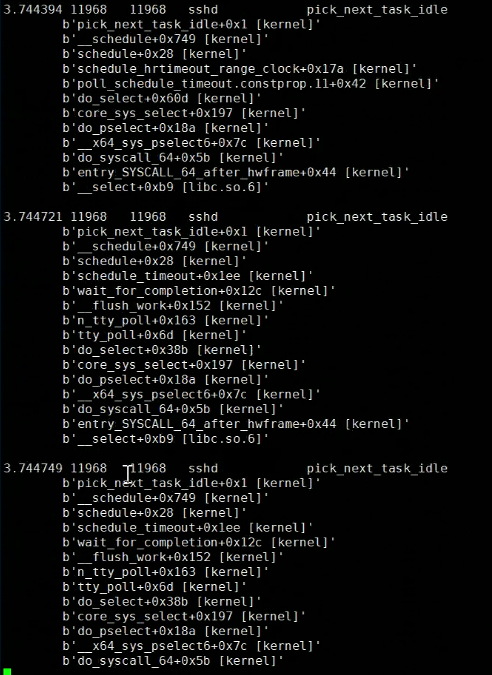

trace_pick_next_task_idle
追踪pick_next_task_fair函数内部: 1 2 3 4 5
| stap -ve ' probe kernel.statement("pick_next_task_fair@kernel/sched/fair.c:*") { printf("%s\n", pp()); } ' -DSTP_NO_BUILDID_CHECK
|
追踪 net_rx_action 实际耗时:
1 2 3 4 5 6 7 8 9 10 11 12
| bpftrace -e ' kprobe:net_rx_action { @start[tid] = nsecs; } kretprobe:net_rx_action /@start[tid]/ { @latency_us = hist((nsecs - @start[tid]) / 1000); // 转换为微秒再生成直方图 delete(@start[tid]); } interval:s:1 { print(@latency_us); clear(@latency_us); }'
|
1 2 3 4 5 6 7 8
| bpftrace -e ' kretprobe:virtnet_poll { printf("time=%ld.%ld retval=%d cpu=%d pid=%d comm=%s\n", nsecs / 1000, nsecs % 1000, retval, cpu, pid, comm); printf("stack:\n%s\n", kstack); } '
|
1 2 3 4 5 6 7
| bpftrace -e ' kretprobe:virtnet_poll { printf("time=%ld.%ld retval=%d cpu=%d pid=%d comm=%s\n", nsecs / 1000, nsecs % 1000, retval, cpu, pid, comm); } '
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14
| bpftrace -e ' kprobe:virtnet_poll { printf("time=%ld.%ld cpu=%d pid=%d comm=%s\n", nsecs / 1000, nsecs % 1000, cpu, pid, comm); printf("stack:\n%s\n", kstack); }
kretprobe:virtnet_poll { printf("time=%ld.%ld retval=%d cpu=%d pid=%d comm=%s\n", nsecs / 1000, nsecs % 1000, retval, cpu, pid, comm); } '
|

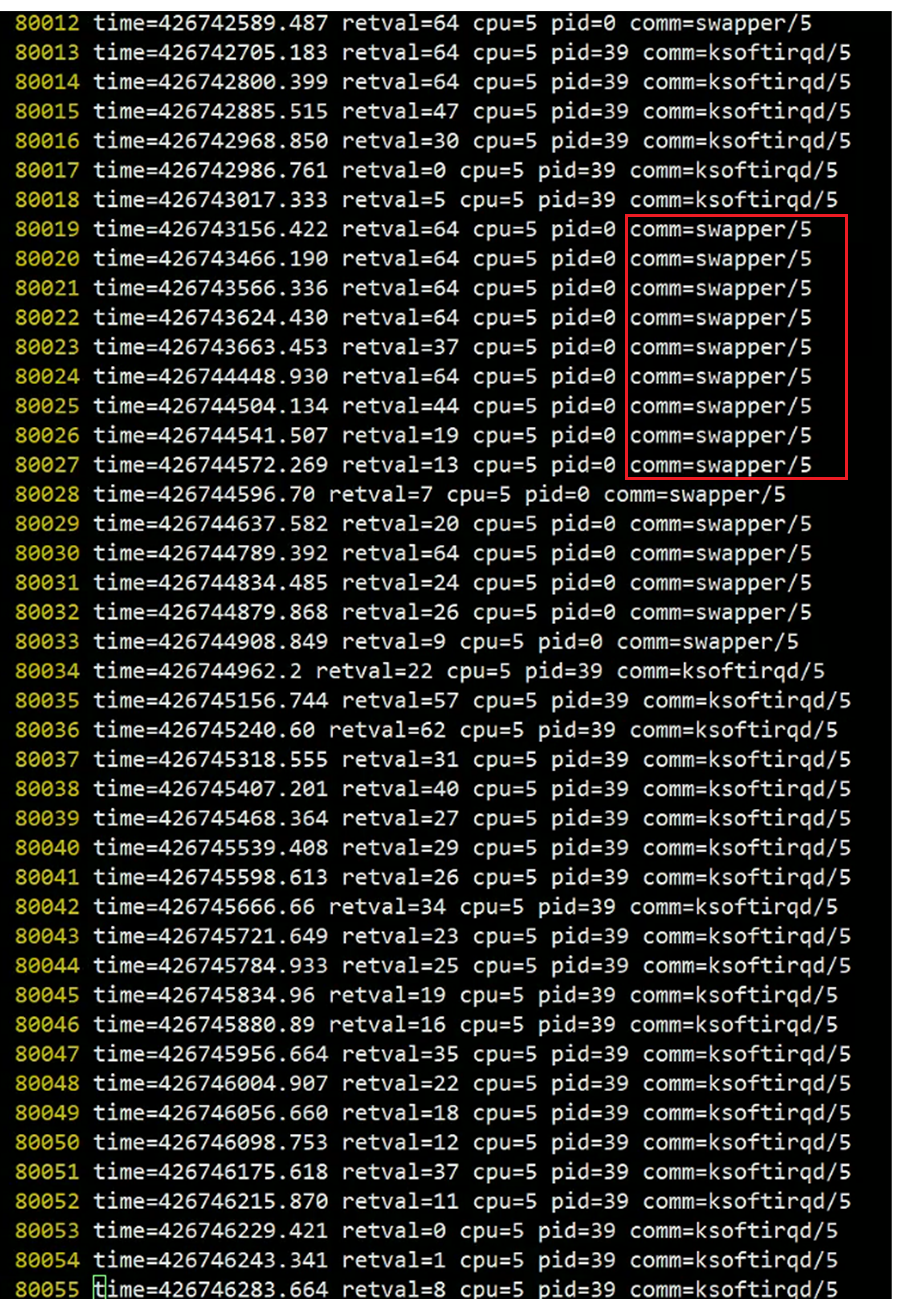

kprobe_virtnet_poll
1 2 3 4 5 6 7 8 9 10
| stap -d kernel -ve ' probe module("virtio_net").function("receive_buf") { printf("vq=%p name=%s index=%d, num_free=%d\n", $rq->vq, kernel_string($rq->vq->name), $rq->vq->index, $rq->vq->num_free ); } ' -DSTP_NO_BUILDID_CHECK
|

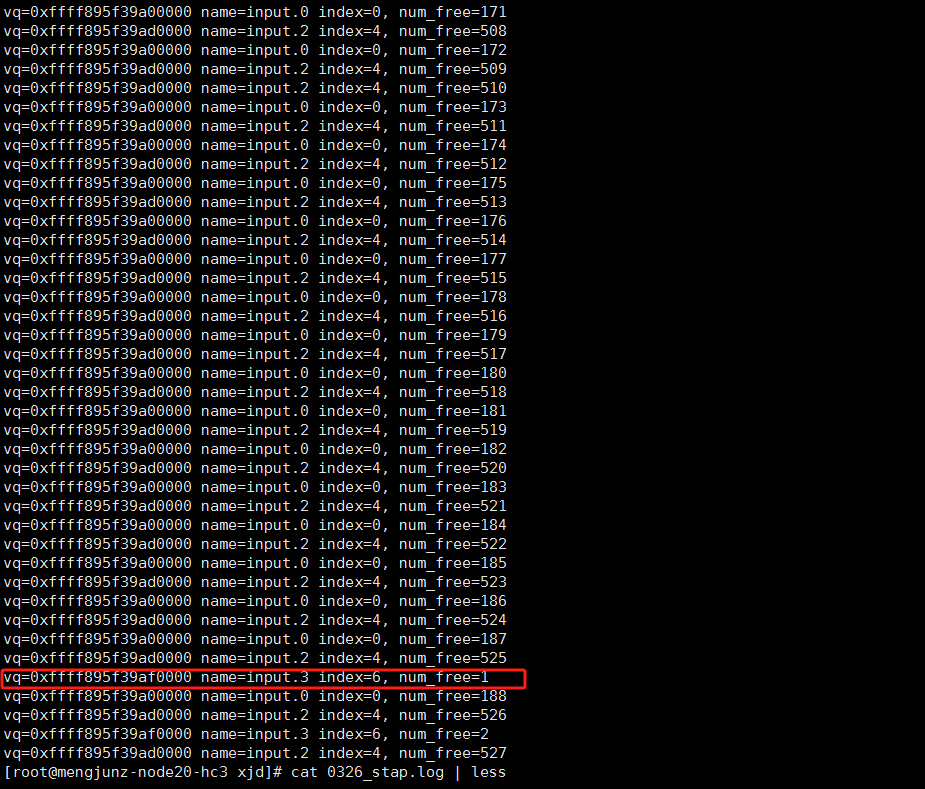

virtio_net_receive_buf
1
| cat /proc/net/softnet_stat
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27
| [root@mengjunz-node20-hc3 ~] 00b2b85e 00000000 00000001 00000000 00000000 00000000 00000000 00000000 00000000 00a8e14f 00000000 002923c4 00000000 00000001 00000000 00000000 00000000 00000000 00000000 00000000 0026a75e 00000000 00044858 00000000 0000017a 00000000 00000000 00000000 00000000 00000000 00000000 0001af31 00000000 00c051de 00000000 00000003 00000000 00000000 00000000 00000000 00000000 00000000 00b170d9 00000000 000f1032 00000000 00000001 00000000 00000000 00000000 00000000 00000000 00000000 000d5f66 00000000 00002bc7 00000000 000017d4 00000000 00000000 00000000 00000000 00000000 00000000 000004f5 00000000 008eb9b3 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00852e5b 00000000 008fa824 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0086279b 00000000 [root@mengjunz-node20-hc3 ~] 00b30992 00000000 00000001 00000000 00000000 00000000 00000000 00000000 00000000 00a92dfe 00000000 002930d0 00000000 00000001 00000000 00000000 00000000 00000000 00000000 00000000 0026b3c7 00000000 00044858 00000000 0000017a 00000000 00000000 00000000 00000000 00000000 00000000 0001af31 00000000 00c09445 00000000 00000003 00000000 00000000 00000000 00000000 00000000 00000000 00b1aa8c 00000000 000f1038 00000000 00000001 00000000 00000000 00000000 00000000 00000000 00000000 000d5f6c 00000000 00002bc9 00000000 000017e0 00000000 00000000 00000000 00000000 00000000 00000000 000004f7 00000000 008f12db 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0085824d 00000000 00900f39 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00868893 00000000 [root@mengjunz-node20-hc3 ~] 00b3471f 00000000 00000001 00000000 00000000 00000000 00000000 00000000 00000000 00a96804 00000000 002933f9 00000000 00000001 00000000 00000000 00000000 00000000 00000000 00000000 0026b6b4 00000000 00044861 00000000 0000017a 00000000 00000000 00000000 00000000 00000000 00000000 0001af35 00000000 00c0c10c 00000000 00000003 00000000 00000000 00000000 00000000 00000000 00000000 00b1d156 00000000 000f1038 00000000 00000001 00000000 00000000 00000000 00000000 00000000 00000000 000d5f6c 00000000 00002bca 00000000 000017e8 00000000 00000000 00000000 00000000 00000000 00000000 000004f8 00000000 008f59be 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0085c4d7 00000000 00904a0b 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0086bfe5 00000000
|
主要问题:仅 CPU 核5 的 time_squeeze
缓慢增长,但无丢包或处理延迟。
操作建议:暂不调优,持续监控;若增长加速或出现性能问题,再增大
netdev_budget 或优化多队列。
